HD OUTDOOR LED SCREENS
Description

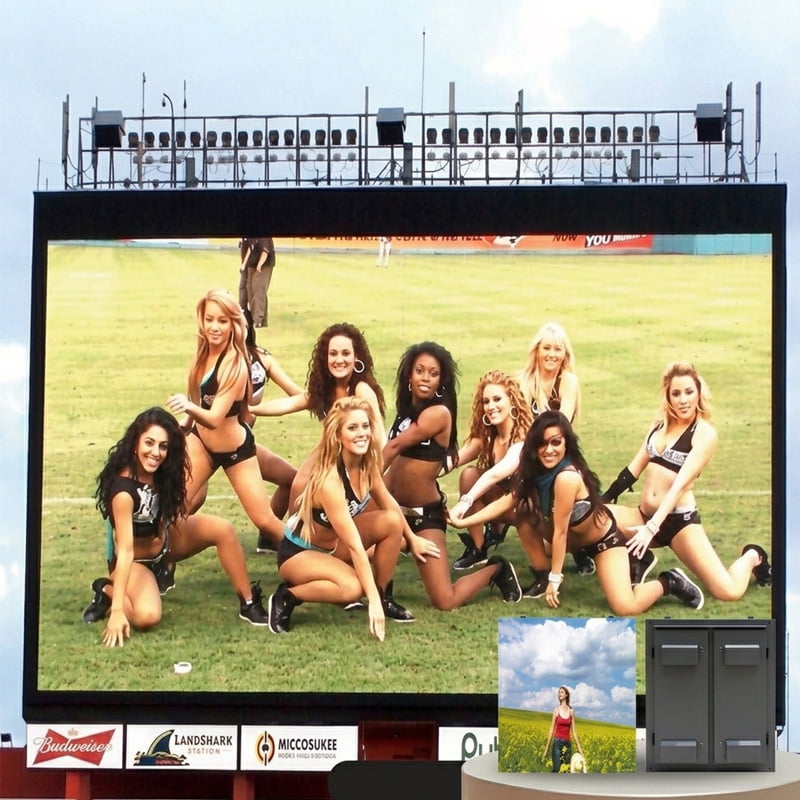

- ✓ Application: Designed for outdoor advertising, building facades, commercial plazas, stadiums, and public display projects.
- ✓ Brightness: 4000-8000cd/m² brightness options for clear visibility in outdoor daylight environments.
- ✓ Pixel Pitch: P3 / P4 / P6 / P8 / P16 options available for different viewing distances.

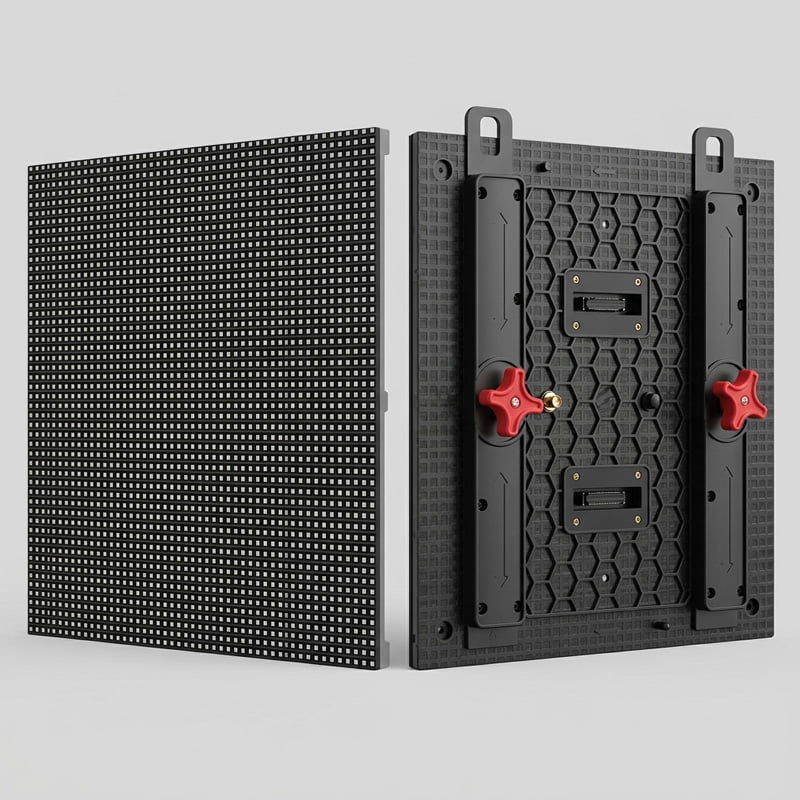

- ✓ Cabinet Options: Multiple cabinet sizes from 576mm*576mm to 1024mm*1024mm for flexible installation.
- ✓ Smooth Display: ≥3840Hz refresh rate with ICN1065 driving IC for stable outdoor video playback.
- ✓ Wide Viewing Angle: Optional H ≥160° and V ≥120° viewing angles for better audience coverage.
- ✓ Protection: IP65 front and back protection for reliable outdoor operation.
- ✓ Lifetime: 100,000 hours long service life for continuous outdoor commercial use.
Get a Quote
Interested in this product? Contact our team for pricing, customization options, and technical specifications.
Categories
Product Details
Specifications
Technical Specifications
Detailed technical parameters across all available models.
| ITEM | HD OUTDOOR LED SCREENS | ||||
|---|---|---|---|---|---|
| Product model | SJ-P3 | SJ-P4 | SJ-P6 | SJ-P8 | SJ-P16 |
| Pixel pitch | 3mm | 4mm | 6mm | 8mm | 16mm |
| Physical density | 111111/m² | 62500/m² | 27777/m² | 15625/m² | 3906/m² |
| LED Package | SMD 1921 (3in1) | SMD 1921 (3in1) | SMD 3535 (3in1) | SMD 3535 (3in1) | SMD 3535 (3in1) |
| Module size | 192mm*192mm | 256mm*128mm | 192mm*192mm | 256mm*128mm | 256mm*256mm |
| Modules resolution | 64*64 | 64*32 | 32*32 | 32*16 | 16*16 |
| Modules weight | 0.45kg | 0.4kg | 0.45kg | 0.4kg | 0.6kg |
| Driving method | 1/16S | 1/8S | 1/8S | 1/4S | Static scan |
| Interface definition | HUB-16P | ||||
| Cabinet size | 576mm*576mm | 512mm*512mm | 960mm*960mm | 1024mm*1024mm | 1024mm*1024mm |
| Cabinets weight | 40kg/m² | ||||
| cabinets resolution | 192*192 | 128*128 | 160*160 | 128*128 | 64*64 |
| brightness(cd/m²) | 4000-6500cd/m² | 4000-6500cd/m² | 5500-8000cd/m² | 5500-8000cd/m² | 5500-8000cd/m² |
| Power consumption | Max: ≤810W/m², Average: ≤400W/m² | Max: ≤810W/m², Average: ≤400W/m² | Max: ≤810W/m², Average: ≤400W/m² | Max: ≤880W/m², Average: ≤400W/m² | Max: ≤920W/m², Average: ≤450W/m² |
| Refresh rate | ≥3840Hz (ICN1065 Driving IC) | ||||
| Viewing angle Level | H: ≥160°Optional, V: ≥120°Optional | ||||
| Viewing distance | 3-30m | 4-40m | 6-60m | 8-100m | 16-200m |
| Temperature | Working: -25℃~60℃, Storage: -35℃~80℃ | ||||
| Humidity | 10%~95% | ||||
| Working voltage | Input: AC 100V~240V, 50Hz/60Hz, Output: DC 5V | ||||
| Maintenance method | Front/Back service | ||||
| Maintenance method | Front/Back service | ||||
| Protection grade | Front: IP65, Back: IP65 | ||||
| Lifetime | 100000 Hours | ||||
