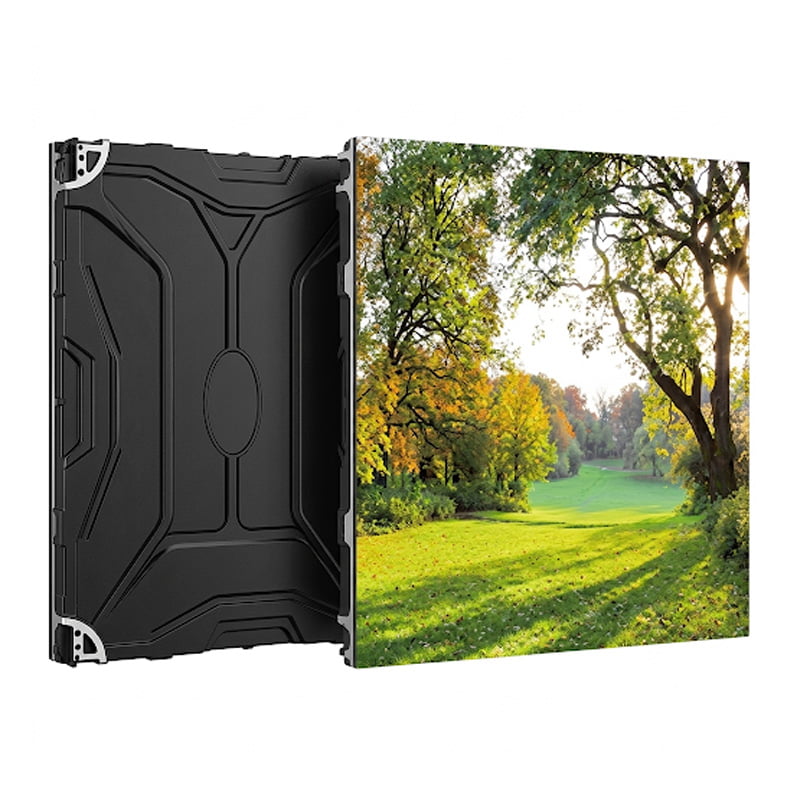

HD SMALL PIXEL PITCH INDOOR LED SCREENS 320MM*160MM
Description
Sleek & Portable: Ultra-thin, lightweight cabinets designed for space-saving and effortless setup.
Stunning Clarity: Experience vivid HD performance with high-speed refresh rates for premium indoor display.
Versatile Small-Pixel Pitch: Precise 320mm*160mm modules offer incredible flexibility for custom screen sizes.
Flawless Visual Continuity: Advanced seamless splicing eliminates borders for a unified, high-impact display.
Simplified Upkeep: User-friendly front maintenance ensures minimal downtime and easy component access.
Get a Quote
Interested in this product? Contact our team for pricing, customization options, and technical specifications.
Categories
Product Details
Technical Specifications
Detailed technical parameters across all available models.
| ITEM | HD SMALL PIXEL PITCH INDOOR LED SCREENS 320MM*160MM | |||||
|---|---|---|---|---|---|---|
| Product model | SJ-P1.25 | SJ-P1.53 | SJ-P1.86 | SJ-P2 | SJ-P2.5 | SJ-P3.076 |
| Pixel pitch | 1.25mm | 1.53mm | 1.86mm | 2mm | 2.5mm | 3.076mm |
| Physical density | 640000/m² | 427186/m² | 289050/m² | 250000/m² | 160000/m² | 105689/m² |
| LED Package | SMD 1010 (3in1) | SMD 1212 (3in1) | SMD 1515 (3in1) | SMD 1515(3in1) | SMD 2121 (3in1) | SMD 2121 (3in1) |
| Module size | 320mm*160mm | |||||
| Modules resolution | 256*128 | 208*104 | 172*86 | 160*80 | 128*64 | 104*52 |
| Modules weight | 0.48kg±0.05kg | 0.48kg±0.05kg | 0.48kg±0.05kg | 0.5kg | 0.5kg | 0.5kg |
| Driving method | 1/64S | 1/52S | 1/43S | 1/30S | 1/32S | 1/26S |
| Interface definition | HUB-16P/26P | HUB-16P/26P | HUB-16P/26P | HUB-16P | HUB-16P | HUB-16P |
| Cabinet size | 640mm*480mm*70mm | 640mm*480mm*70mm | 640mm*480mm*70mm | 640mm*640mm*85mm | 640mm*640mm*85mm | 640mm*640mm*85mm |
| Cabinets weight | 7kg | 7kg | 7kg | 7.5kg | 7.5kg | 7.5kg |
| cabinets resolution | 512*384 | 416*312 | 344*258 | 320*320 | 256*256 | 208*208 |
| Equilibrium / brightness(cd/m²) | 700-800cd/m² | 700-800cd/m² | 700-800cd/m² | 650cd/m² | 800-1000cd/m² | 800-1000cd/m² |
| Power consumption | Max: ≤780W/m², Average: ≤390W/m² | Max: ≤780W/m², Average: ≤390W/m² | Max: ≤780W/m², Average: ≤390W/m² | Max: ≤800W/m², Average: ≤420W/m² | Max: ≤800W/m², Average: ≤420W/m² | Max: ≤800W/m², Average: ≤420W/m² |
| Refresh rate | ≥3840Hz (ICN1065 Driving IC) | |||||
| Viewing angle Level | H: ≥160°Optional, V: ≥120°Optional | |||||
| Viewing distance | 1-20m | 1-20m | 1-20m | 2-40m | 2-40m | 2-40m |
| Temperature | Working: -25℃~60℃, Storage: -35℃~80℃ | |||||
| Humidity | 10%~90% | |||||
| Working voltage | Input: AC 100V~240V, 50Hz/60Hz, Output: DC 5V | |||||
| Maintenance method | Front/Back service | |||||
| Protection grade | Front: IP40, Back: IP51 | |||||
| Lifetime | 100000 Hours | |||||
