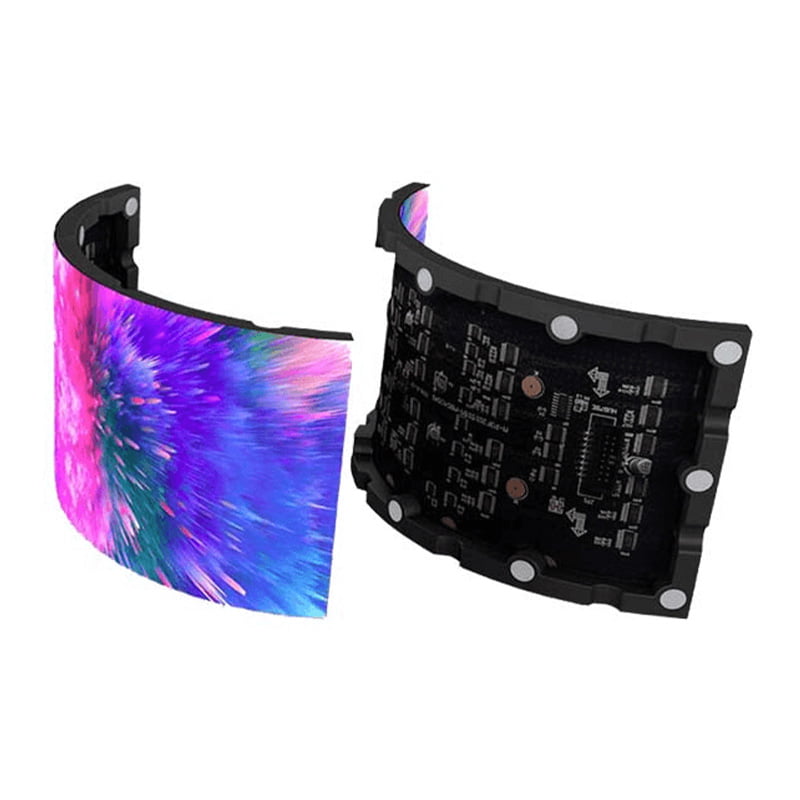

HD INDOOR FLEXIBLE LED SCREENS
Description
- ✓ Application: Ideal for indoor curved walls, creative stages, exhibitions, showrooms, and flexible commercial display projects.
- ✓ Flexible Design: 960mm*960mm*85mm cabinet with 18kg/m² lightweight structure for curved LED installation.
- ✓ Pixel Pitch: P1.25 / P1.53 / P2 / P2.5 / P3.076 / P4 options for high-definition indoor viewing.
- ✓ Brightness: 600-1300cd/m² brightness range for comfortable indoor visual performance.
- ✓ Smooth Display: ≥3840Hz refresh rate with ICN1065 driving IC for stable and flicker-free playback.
- ✓ Viewing Distance: Supports 1m to 40m viewing range for close-range indoor display applications.
- ✓ Maintenance: Front and back service design for convenient installation and maintenance.
- ✓ Lifetime: 100,000 hours long service life for continuous indoor commercial operation.
Get a Quote
Interested in this product? Contact our team for pricing, customization options, and technical specifications.
Categories
Product Details
Specifications
Technical Specifications
Detailed technical parameters across all available models.
| ITEM | HD INDOOR FLEXIBLE LED SCREENS | |||||
|---|---|---|---|---|---|---|
| Product model | SJ-P1.25 | SJ-P1.53 | SJ-P2 | SJ-P2.5 | SJ-P3.076 | SJ-P4 |
| Pixel pitch | 1.25mm | 1.53mm | 2mm | 2.5mm | 3.076mm | 4mm |
| Physical density | 640000/m² | 427186/m² | 250000/m² | 160000/m² | 105625/m² | 62500/m² |
| LED Package SMD | SMD 1515 (3in1) | SMD 1515 (3in1) | SMD 1515 (3in1) | SMD 2121 (3in1) | SMD 2121 (3in1) | SMD 2121 (3in1) |

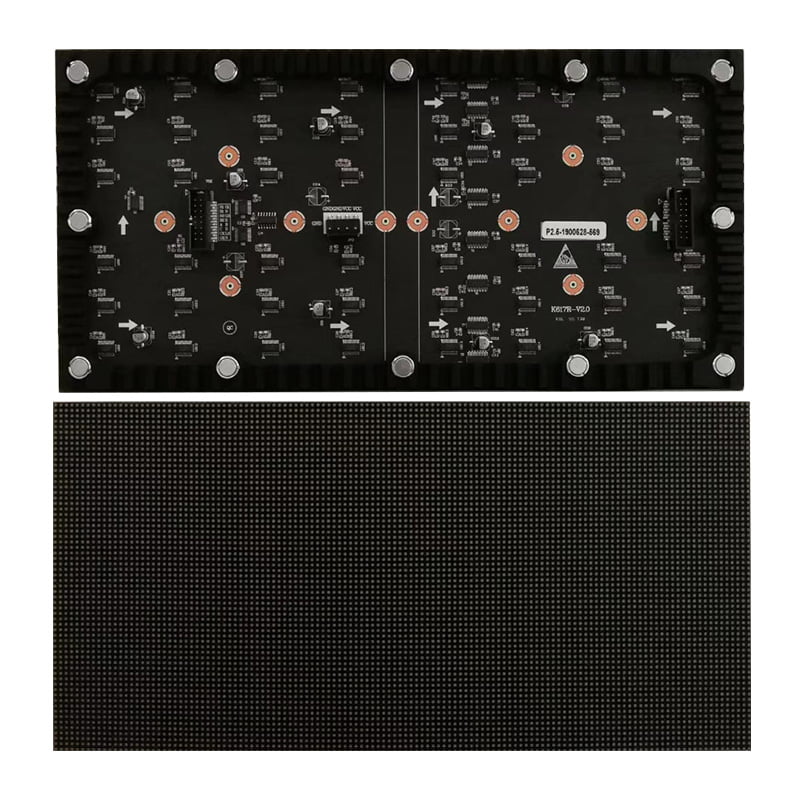

| Module size | 320mm*160mm | |||||
| Modules resolution | 256*128 | 208*104 | 160*80 | 128*64 | 104*52 | 80*40 |
| Modules weight | 0.21kg | |||||
| Driving method | 1/32S | 1/32S | 1/30S | 1/24S | 1/20S | 1/16S |
| Interface definition | HUB-16P | |||||
| Cabinet size | 960mm*960mm*85mm | |||||
| Cabinets weight | 18kg/m² | |||||
| cabinets resolution | 768*768 | 624*624 | 480*480 | 384*384 | 312*312 | 256*256 |
| brightness(cd/m²) | 600-850cd/m² | 600-850cd/m² | 600-850cd/m² | 1000-1300cd/m² | 1000-1300cd/m² | 1000-1300cd/m² |
| Power consumption | Max: 800W/m², Average: ≤400W/m² | |||||
| Refresh rate | ≥3840Hz (ICN1065 Driving IC) | |||||
| Viewing angle Level | H: ≥160°Optional, V: ≥120°Optional | |||||
| Viewing distance | 1-15m | 1.5-25m | 2-25m | 2.5-25m | 3-30m | 4-40m |
| Temperature | Working: -25℃~60℃, Storage: -35℃~80℃ | |||||
| Humidity | 10%~90% | |||||
| Working voltage | Input: AC 100V~240V, 50Hz/60Hz, Output: DC 5V | |||||
| Maintenance method | Front/Back service | |||||
| Protection grade | Front: IP40, Back: IP41 | |||||
| Lifetime | 100000 Hours | |||||
