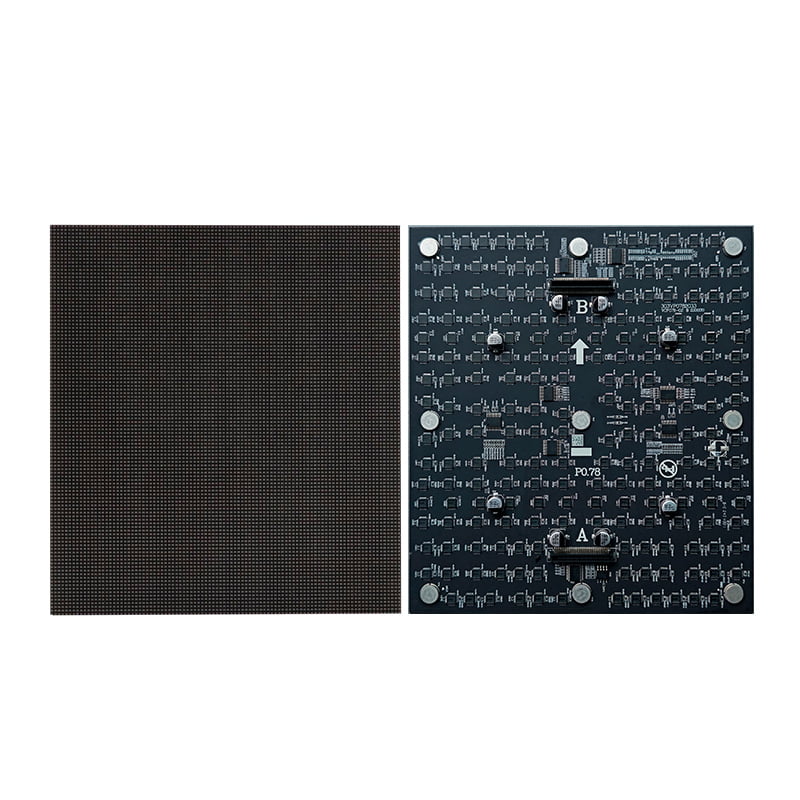

HD SMALL PIXEL PITCH INDOOR COB LED SCREENS
Description
- ✓ Application: Ideal for indoor control rooms, conference centers, broadcast studios, luxury retail, and close-viewing video walls.
- ✓ COB Technology: COB 4in1 technology delivers excellent protection, high reliability, and smooth surface performance.
- ✓ Small Pixel Pitch: P0.625 / P0.78 / P0.9375 / P1.25 / P1.5625 / P1.875 options for ultra-HD viewing.
- ✓ Brightness: 800-1000cd/m² brightness range for clear and comfortable indoor image performance.
- ✓ Slim Cabinet: 600mm*337.5mm*27.5mm cabinet with 4.5kg lightweight design for elegant installation.
- ✓ Wide Viewing Angle: Optional H ≥170° and V ≥170° viewing angles for excellent visual coverage.
- ✓ Front Service: Front maintenance design makes installation and servicing more convenient.
- ✓ Lifetime: 100,000 hours long service life for continuous indoor commercial operation.
Get a Quote
Interested in this product? Contact our team for pricing, customization options, and technical specifications.
Categories
Product Details
Specifications
Technical Specifications
Detailed technical parameters across all available models.
| ITEM | HD SMALL PIXEL PITCH INDOOR COB LED SCREENS | |||||
|---|---|---|---|---|---|---|
| Product model | SJ-P0.625 | SJ-P0.78 | SJ-P0.9375 | SJ-P1.25 | SJ-P1.5625 | SJ-P1.875 |
| Pixel pitch | 0.625mm | 0.625mm | 0.625mm | 1.25mm | 1.875mm | 1.875mm |
| Physical density | 2560000/㎡ | 1638400/㎡ | 1137778/m² | 640000/㎡ | 409600/㎡ | 284444/㎡ |
| LED Package | COB 4in1 Technology | |||||
| Module size | 150mm × 168.75mm | |||||
| Modules resolution | 240×270 | 192×216 | 160×180 | 120×135 | 96×108 | 80×90 |
| Modules weight | 0.15kg | |||||
| Driving method | 64S | 64S | 1/60S | 1/60S | 1/48S | 1/45S |
| Interface definition | HUB-16P | |||||
| Cabinet size (W×H×T) | 600mm × 337.5mm × 27.5mm | |||||
| Cabinets weight | 4.5kg | |||||
| Cabinets resolution | 960×540 | 768×432 | 640×360 | 480×270 | 384×216 | 320×180 |
| Brightness (cd/m²) | 800-1000 cd/m² | |||||
| Power consumption | Max: ≤420W/m², Average: ≤150W/m² | |||||
| Refresh rate (Hz) | ≥3840Hz (ICN1065 Driving IC) | |||||
| Viewing angle (Deg) | H: ≥170° Optional, V: ≥170° Optional | |||||
| Viewing distance | 1-30m | |||||
| Temperature | Working: -20~60°C, Storage: -20~60°C | |||||
| Humidity (%) | 10%-85% | |||||
| Working voltage | Input: AC 90V-264V, 40Hz/60Hz; Output: DC 5V | |||||
| Maintenance method | Front service | |||||
| Front service | IP31 | |||||
| Lifetime (Hour) | 100,000 Hours | |||||
