Indoor rental

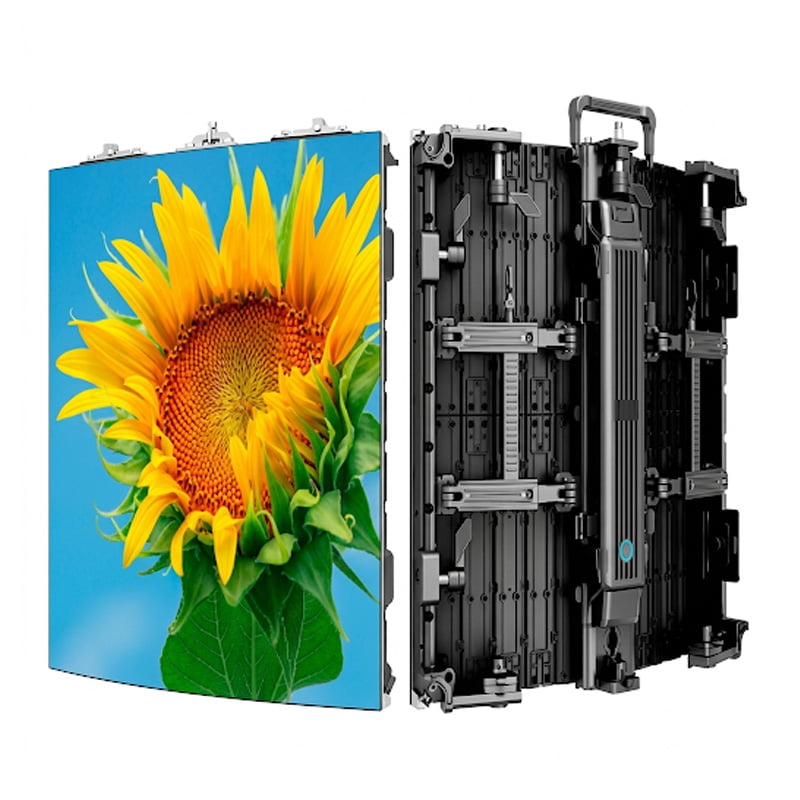

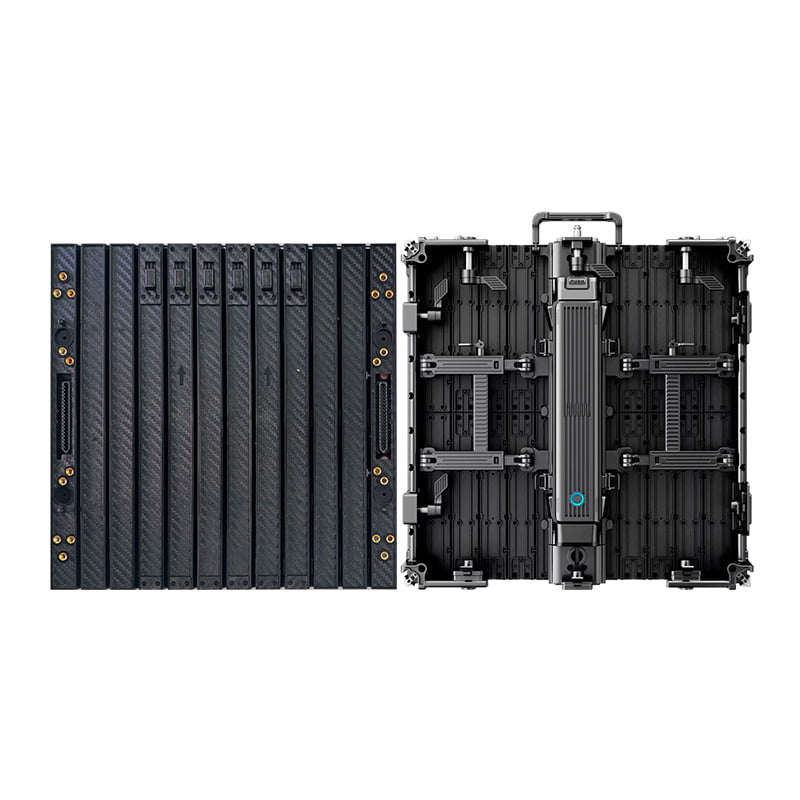

HD INDOOR RENTAL FLEXIBLE LED SCREENS
Description
- ✓ Application: Designed for indoor rental events, curved stages, exhibitions, conferences, and creative LED display setups.
- ✓ Flexible Design: 500mm*500mm*88mm cabinet with 7kg lightweight structure for flexible indoor rental installation.
- ✓ Pixel Pitch: P1.56 / P1.953 / P2.604 / P2.976 / P3.91 / P4.81 options available.
- ✓ Brightness: 900-1100cd/m² brightness range for clear and comfortable indoor visual performance.
- ✓ Smooth Display: ≥3840Hz refresh rate with ICN1065 driving IC for stable and flicker-free playback.
- ✓ Maintenance: Front and back service design for quick setup, maintenance, and replacement.
- ✓ Viewing Distance: Supports 2m to 70m viewing range for flexible indoor event applications.
- ✓ Lifetime: 100,000 hours long service life for repeated indoor commercial operation.
Get a Quote
Interested in this product? Contact our team for pricing, customization options, and technical specifications.
Categories
Product Details
Specifications
Technical Specifications
Detailed technical parameters across all available models.
| ITEM | ITEM HD INDOOR RENTAL FLEXIBLE LED SCREENS | |||||
|---|---|---|---|---|---|---|
| Product model | SJ-P1.56 | SJ-P1.953 | SJ-P2.604 | SJ-P2.976 | SJ-P3.91 | SJ-P4.81 |
| Pixel pitch | 1.56mm | 1.953mm | 2.604mm | 2.976mm | 3.91mm | 4.81mm |
| Physical density | 410914dots/m² | 262178dots/m² | 147456dots/m² | 112896dots/m² | 65536dots/m² | 43264dots/m² |
| LED Package SMD | SMD 1010 (3in1) | SMD 1515 (3in1) | SMD 2020 (3in1) | SMD 2020 (3in1) | SMD 2020 (3in1) | SMD 2020 (3in1) |
| Module size | 250mm*250mm | |||||
| Modules resolution | 160*160 | 128*128 | 96*96 | 84*84 | 64*64 | 52*52 |
| Modules weight | 0.38kg | |||||
| Driving method | 1/32S | 1/32S | 1/32S | 1/28S | 1/16S | 1/13S |
| Interface definition | HUB-16P | |||||
| Cabinet size | 500mm*500mm*88mm | |||||
| Cabinets weight | 7kg | |||||
| cabinets resolution | 320*320 | 256*256 | 192*192 | 168*168 | 128*128 | 104*104 |
| brightness(cd/m²) | 900-1100cd/m² | |||||
| Power consumption | Max: ≤880W/m², Average: ≤400W/m² | |||||
| Refresh rate | ≥3840Hz (ICN1065 Driving IC) | |||||
| Viewing angle Level | H: ≥160°Optional, V: ≥120°Optional | |||||
| Viewing distance | 2-30m | 2-30m | 2.5-30m | 3-60m | 4-60m | 5-70m |
| Temperature | Working: -25℃~60℃, Storage: -35℃~80℃ | |||||
| Humidity | 10%~90% | |||||
| Working voltage | Input: AC 100V~240V, 50Hz/60Hz, Output: DC 5V | |||||
| Maintenance method | Front/Back service | |||||
| Protection grade | Front: IP41, Back: IP51 | |||||
| Lifetime | 100000 Hours | |||||
