STADIUM PERIMETER LED SCREEN
Description
- ✓ Application: Designed for stadium perimeter advertising, sports venues, arenas, and outdoor event displays.
- ✓ Brightness: 5500-8000cd/m² high brightness for clear visibility in outdoor environments.
- ✓ Protection: IP65 front and back protection for reliable outdoor performance.
- ✓ Pixel Pitch: P5 / P6.67 / P8 / P10 options available for different viewing distances.
- ✓ Refresh Rate: ≥3840Hz refresh rate with ICN1065 driving IC for smooth video playback.
- ✓ Viewing Distance: Covers 5m to 150m viewing range for flexible stadium applications.
- ✓ Maintenance: Back service design for convenient maintenance and installation.
- ✓ Lifetime: 100,000 hours long service life for continuous commercial operation.
Get a Quote
Interested in this product? Contact our team for pricing, customization options, and technical specifications.
Categories
Product Details
Specifications
Technical Specifications
Detailed technical parameters across all available models.
| ITEM | STADIUM PERIMETER LED SCREEN | |||
|---|---|---|---|---|
| Product model | SJ-P5 | SJ-P6.67 | SJ-P8 | SJ-P10 |
| Pixel pitch | 5mm | 6.67mm | 8mm | 10mm |
| Physical density | 40000/m² | 22478/m² | 15625/m² | 10000/m² |
| LED Package | SMD 2727 (3in1) or SMD 3535 (3in1) | |||

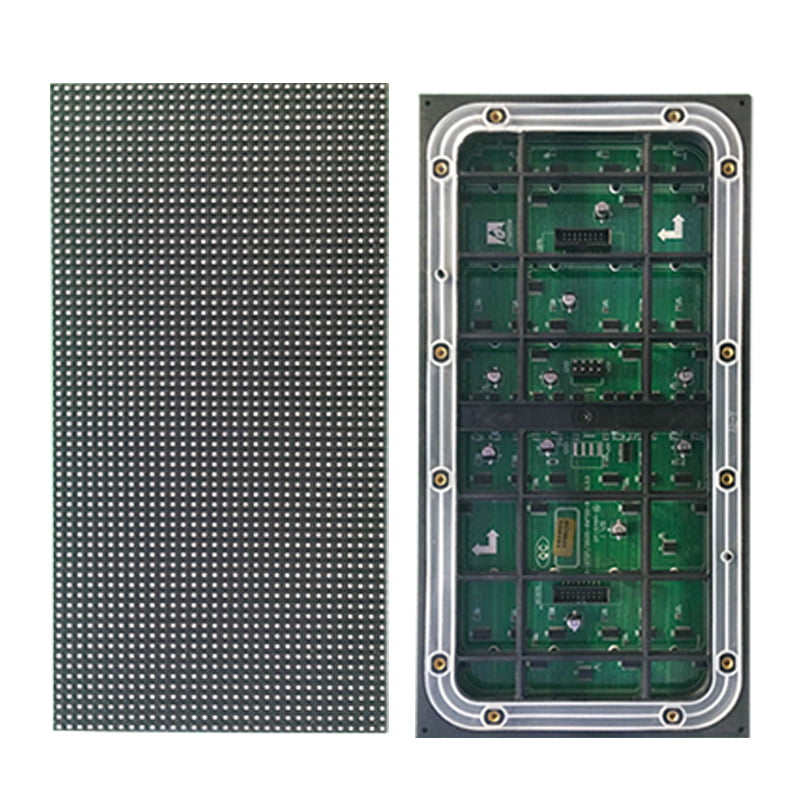

| Module size | 320mm*160mm | |||
| Modules resolution | 64*32 | 48*24 | 40*20 | 32*16 |
| Modules weight | 0.8KG | 0.8KG | 0.8KG | 0.5KG |
| Driving method | 1/8S | 1/6S | 1/5S | 1/2S |
| Interface definition | HUB-16P | |||
| Cabinet size | 960mm*960mm | |||
| Cabinets weight | 35kg/m² | |||
| cabinets resolution | 192*192 | 144*144 | 120*120 | 96*96 |
| brightness(cd/m²) | 5500-8000cd/m² | |||
| Power consumption | Max: ≤800W/m², Average: ≤420W/m² | |||
| Refresh rate | ≥3840Hz (ICN1065 Driving IC) | |||
| Viewing angle Level | H: ≥160°Optional, V: ≥120°Optional | |||
| Viewing distance | 5-50m | 6-60m | 8-100m | 10-150m |
| Temperature | Working: -25℃~60℃, Storage: -35℃~80℃ | |||
| Humidity | 10%~90% | |||
| Working voltage | Input: AC 100V~240V, 50Hz/60Hz, Output: DC 5V | |||
| Maintenance method | Back service | |||
| Protection grade | Front: IP65, Back: IP65 | |||
| Lifetime | 100000 Hours | |||
