OUTDOOR CYLINDRICAL LED SCREEN
Description
- ✓ Application: Ideal for outdoor cylindrical columns, commercial plazas, shopping malls, and creative public displays.

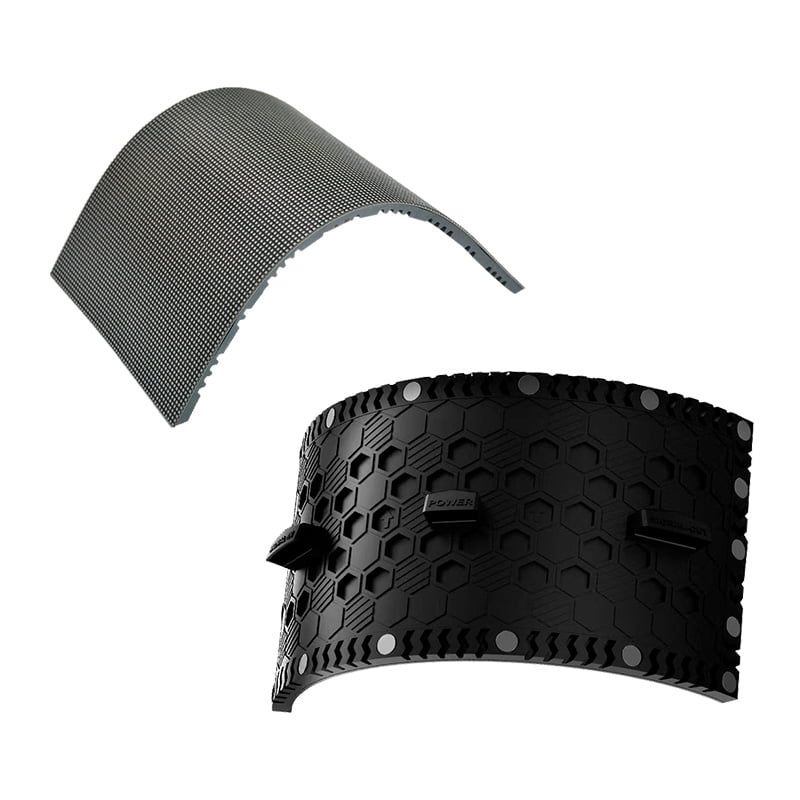

- ✓ Cylindrical Design: 960mm*960mm*85mm cabinet structure for curved and column-mounted LED display projects.
- ✓ Brightness: 4000-6000cd/m² brightness options for clear outdoor visual performance.
- ✓ Pixel Pitch: P2.5 / P4 / P5 / P10 options available for different viewing distances.
- ✓ Protection: IP65 front and back protection for reliable outdoor installation.
- ✓ Smooth Display: ≥3840Hz refresh rate with ICN1065 driving IC for stable video playback.
- ✓ Maintenance: Front and back service design for convenient installation and repair.
- ✓ Lifetime: 100,000 hours long service life for continuous outdoor commercial operation.
Get a Quote
Interested in this product? Contact our team for pricing, customization options, and technical specifications.
Categories
Product Details
Specifications
Technical Specifications
Detailed technical parameters across all available models.
| ITEM | OUTDOOR CYLINDRICAL LED SCREEN | |||
|---|---|---|---|---|
| Product model | SJ-P2.5 | SJ-P4 | SJ-P5 | SJ-P10 |
| Pixel pitch | 2.5mm | 4mm | 5mm | 10mm |
| Physical density | 160000/m² | 62500/m² | 40000/m² | 10000/m² |
| LED Package | SMD 1415 (3in1) | SMD 1921 (3in1) | SMD 1921 (3in1) | SMD 2727 (3in1) |

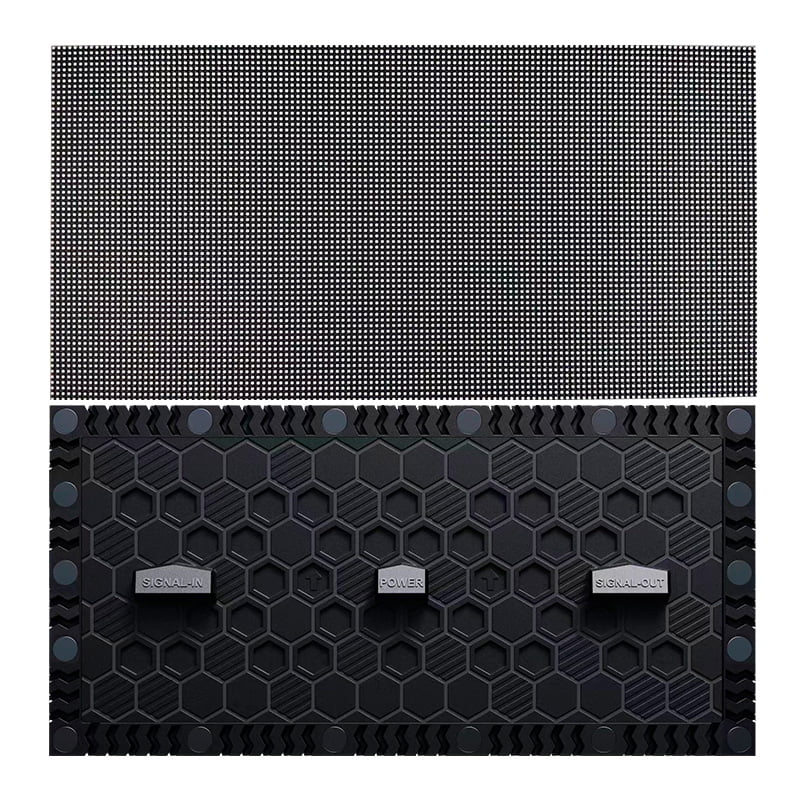

| Module size | 320mm*160mm | |||
| Modules resolution | 128*64 | 80*40 | 64*32 | 32*16 |
| Modules weight | 0.35kg | |||
| Driving method | 1/16S | 1/10S | 1/8S | 1/2S |
| Interface definition | HUB-16P | |||
| Cabinet size | 960mm*960mm*85mm | |||
| Cabinets weight | 37kg | |||
| cabinets resolution | 384*384 | 256*256 | 192*192 | 96*96 |
| brightness(cd/m²) | 4000cd/m² | 4000cd/m² | 4500cd/m² | 6000cd/m² |
| Power consumption | Max: ≤950W/m², Average: ≤520W/m² | |||
| Refresh rate | ≥3840Hz (ICN1065 Driving IC) | |||
| Viewing angle Level | H: ≥160°Optional, V: ≥120°Optional | |||
| Viewing distance | 3-30m | 4-50m | 5-60m | 10-150m |
| Temperature | Working: -25℃~60℃, Storage: -35℃~80℃ | |||
| Humidity | 10%~90% | |||
| Working voltage | Input: AC 100V~240V, 50Hz/60Hz, Output: DC 5V | |||
| Maintenance method | Front / back service | |||
| Protection grade | Front: IP65, Back: IP65 | |||
| Lifetime | 100000 Hours | |||
