Outdoor transparent

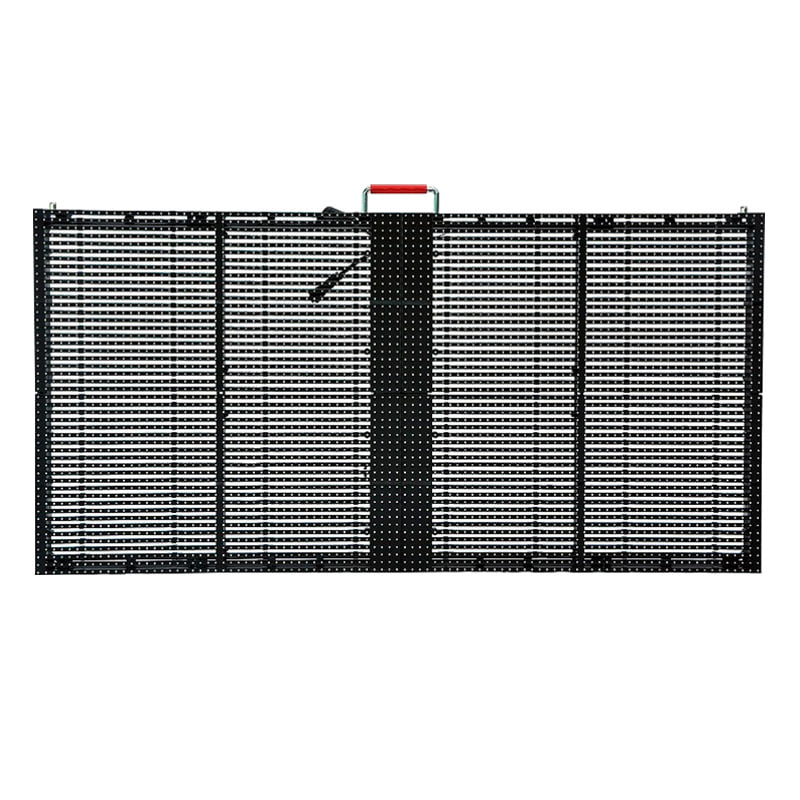

HD OUTDOOR TRANSPARENT LED SCREENS
Description
- ✓ Application: Ideal for outdoor glass walls, building facades, retail windows, and transparent advertising displays.
- ✓ Transparent Design: Lightweight 20kg/m² cabinet structure for creative see-through LED display projects.
- ✓ Brightness: 5000-6500cd/m² high brightness for vivid outdoor visual performance.
- ✓ Pixel Pitch: P2.8 / P3.91 / P7.81 / P10.41 / P15.6 / P25 options available.
- ✓ Smooth Display: ≥3840Hz refresh rate with ICN1065 driving IC for stable and clear video playback.
- ✓ Viewing Distance: Supports 2m to 300m viewing range for flexible outdoor display applications.
- ✓ Maintenance: Front and back service design for convenient installation and maintenance.
- ✓ Lifetime: 100,000 hours long service life for continuous outdoor commercial operation.
Get a Quote
Interested in this product? Contact our team for pricing, customization options, and technical specifications.
Categories
Product Details
Specifications
Technical Specifications
Detailed technical parameters across all available models.
| ITEM | HD OUTDOOR TRANSPARENT LED SCREENS | ||||||
|---|---|---|---|---|---|---|---|
| Product model | SJ-P2.8 | SJ-P3.91 | SJ-P7.81 | SJ-10.41 | SJ-P15.6 | SJ-P25 | SJ-P25 |
| Pixel pitch | 2.8mm | 3.91mm | 7.81mm | 10.41mm | 15.6mm | 25mm | 25mm |
| Physical density | 127551dots/m² | 32768dots/m² | 16384dots/m² | 9126dots/m² | 4096dots/m² | 1600dots/m² | 1024dots/m² |
| LED Package | SMD 1415 (3in1) | SMD 1921 (3in1) | SMD 2727 (3in1) | SMD 2727 (3in1) | SMD 3535 (3in1) | SMD 3535 (3in1) | SMD 3535 (3in1) |
| Driving method | 1/16S | 1/16S | 1/8S | Constant current, static | Constant current, static | Constant current, static | Constant current, static |
| Interface definition | HUB-16P | ||||||
| Cabinet size | 500mm*1000mm / 1000mm*500mm / 1000mm*1000mm | ||||||
| Cabinets weight | 20kg/m² | ||||||
| cabinets resolution | 357*357 | 256*256 | 128*128 | 96*96 | 64*64 | 40*40 | 32*32 |
| brightness(cd/m²) | 5000-6500cd/m² | ||||||
| Power consumption | Max: ≤800W/m², Average: ≤400W/m² | ||||||
| Refresh rate | ≥3840Hz (ICN1065 Driving IC) | ||||||
| Viewing angle Level | H: ≥160°Optional, V: ≥120°Optional | ||||||
| Viewing distance | 2-30m | 3-30m | 8-100m | 10-150m | 16-200m | 25-250m | 30-300m |
| Temperature | Working: -25℃~60℃, Storage: -35℃~80℃ | ||||||
| Humidity | 10%~90% | ||||||
| Working voltage | Input: AC 100V~240V, 50Hz/60Hz, Output: DC 5V | ||||||
| Maintenance method | Front/Back service | ||||||
| Protection grade | Front: IP54, Back: IP65 | ||||||
| Lifetime | 100000 Hours | ||||||
