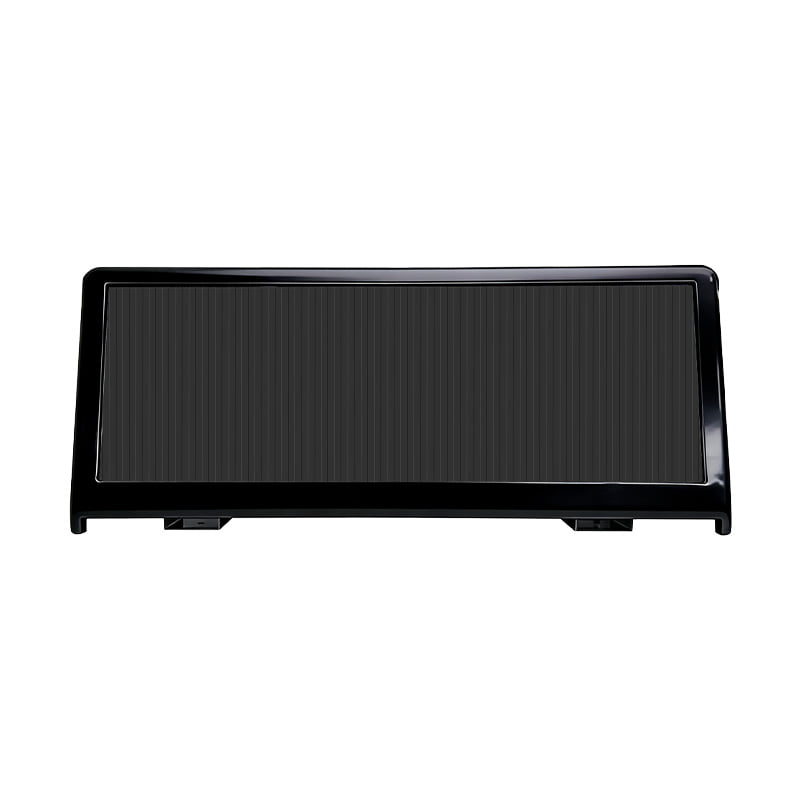

HD OUTDOOR TAXI TOP LED SCREEN
Description
- ✓ Application: Designed for outdoor taxi top advertising, mobile media, and city traffic display solutions.
- ✓ Brightness: ≥4000-6000cd/m² brightness options for clear visibility in outdoor daylight.
- ✓ Pixel Options: P2 / P2.5 / P3.33 / P4 / P5 available for different image clarity needs.
- ✓ Double-Sided Design: 960mm cabinet structure supports double-sided taxi roof display installation.
- ✓ Smooth Playback: ≥3840Hz refresh rate with ICN1065 driving IC for stable video performance.
- ✓ Wide Viewing Angle: Optional H ≥140° and V ≥120° viewing angles for better street visibility.
- ✓ Efficient Power: Average power consumption from ≤230W to ≤650W per PCS depending on model.
- ✓ Lifetime: 75,000-100,000 hours service life for long-term mobile advertising operation.
Get a Quote
Interested in this product? Contact our team for pricing, customization options, and technical specifications.
Categories
Product Details
Specifications
Technical Specifications
Detailed technical parameters across all available models.
| ITEM | HD OUTDOOR TAXI TOP LED SCREEN | ||||
|---|---|---|---|---|---|
| Product model | SJ-P2 | SJ-P2.5 | SJ-P3.33 | SJ-P4 | SJ-P5 |
| Physical density | 250000/m² | 160000/m² | 90000/m² | 52500/m² | 40000/m² |
| Pixel configuration | 1R1G1B | ||||
| LED Package | Nation Star SMD 1112 (3in1) | Nation Star SMD 1415 (3in1) | Nation Star SMD 1921 (3in1) | Nation Star SMD 1921 (3in1) | Nation Star SMD 2727 (3in1) |

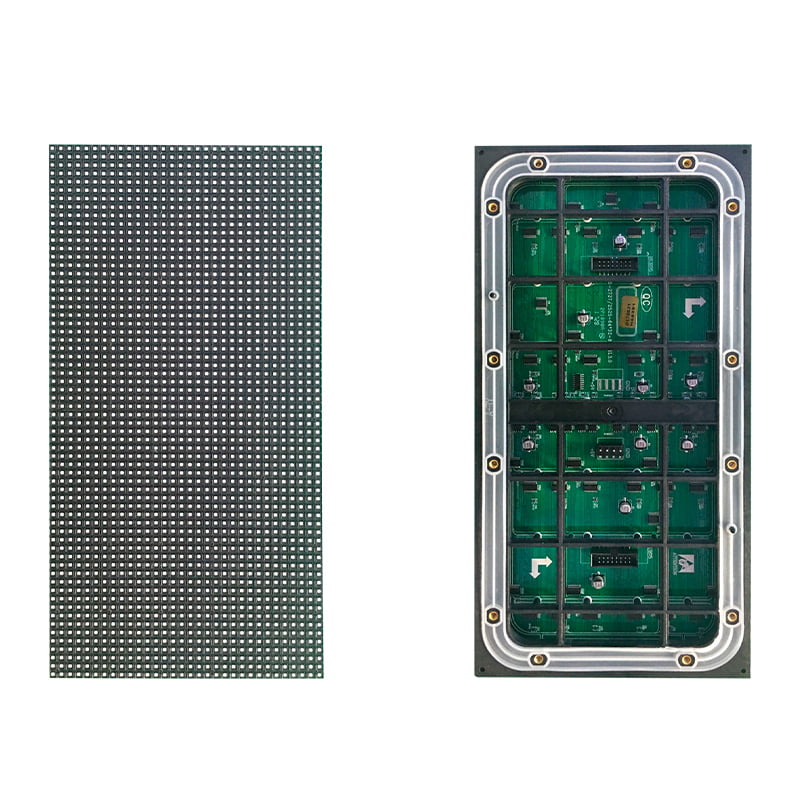

| Module size | 320mm*160mm | ||||
| Modules resolution | 160*80 | 128*64 | 96*48 | 80*40 | 64*32 |
| Modules weight | 0.5±0.01kg | ||||
| Driving method | 1/16S | 1/16S | 1/12S | 1/10S | 1/8S |
| Interface definition | HUB-16P | ||||
| Cabinet size | 960mm*320mm*135mm(1054mm*403mm*190mm/1090mm*435mm*167mm) double sides | ||||
| Cabinets weight | 28kg | ||||
| cabinets resolution | 256*256 | 768*128 | 576*96 | 480*80 | 384*64 |
| brightness(cd/m²) | ≥4000/m² | ≥5000/m² | ≥5000/m² | ≥6000/m² | ≥6000/m² |
| Gray level | 16-65536 adjustment | ||||
| Refresh rate | ≥3840Hz | ||||
| Viewing angle Level | H: >140°Optional, V: >120°Optional | ||||
| label_en Driving IC | ICN1065 Driving IC | ||||
| Power consumption | ≤1000W/PCS | ≤900W/PCS | ≤660W/PCS | ≤510W/PCS | ≤468W/PCS |
| Power consumption | 12±0.05A | 10±0.05A | 11±0.05A | 8.5±0.05A | 7.8±0.05A |
| Maximum power of unit board | ≤55w | ≤50w | ≤45W | ≤42.5W | ≤39W |
| Mean free error time | ≥5000 hours | ||||
| Average power consumption | ≤650W/PCS | ≤450W/PCS | ≤300W/PCS | ≤230W/PCS | ≤250W/PCS |
| Lifetime | 75000~100000 Hours | ||||
