HD OUTDOOR LIGHTING POLE LED SCREENS
Description

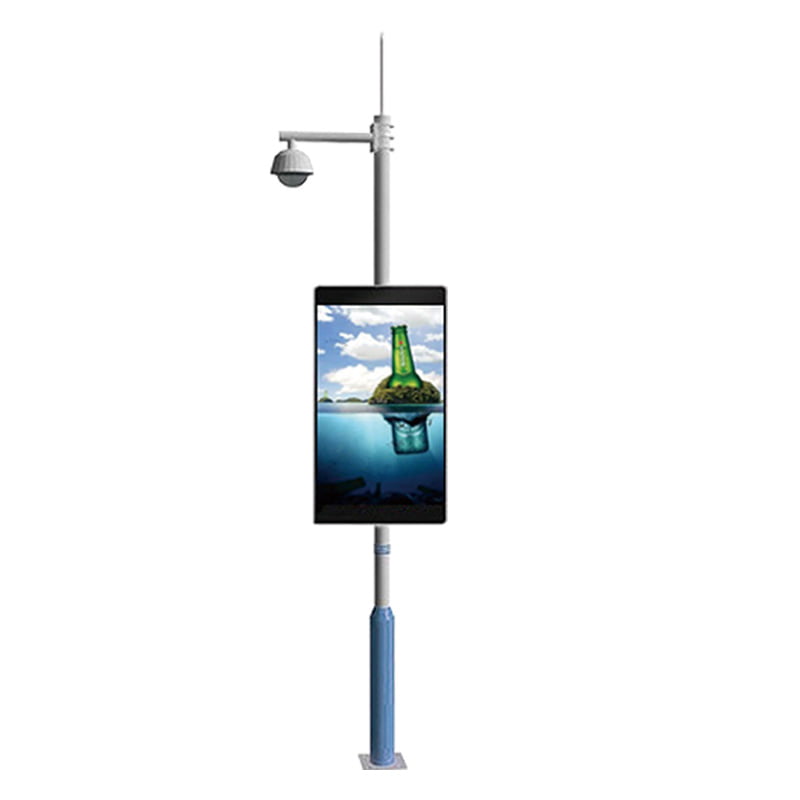

- ✓ Application: Ideal for outdoor lighting poles, roadside advertising, smart city displays, and public information screens.
- ✓ Brightness: ≥4000-6500cd/m² high brightness for strong visibility in outdoor daylight.
- ✓ Pixel Pitch: P2 / P2.5 / P3.076 / P4 / P5 / P6.67 / P8 / P10 options available.

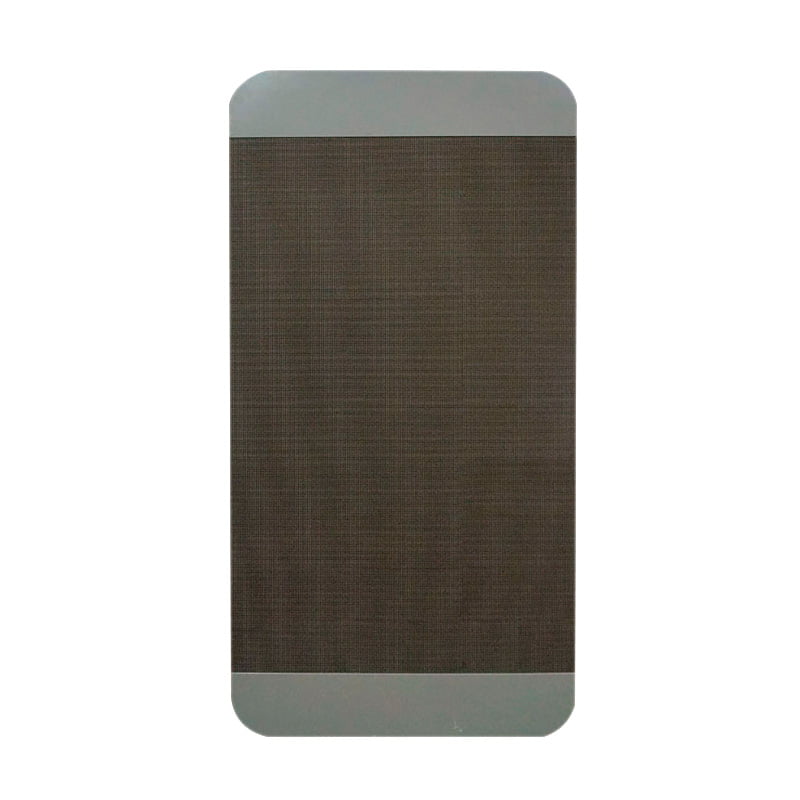

- ✓ Cabinet Design: 960mm*1600mm*160mm cabinet size for slim and stable pole-mounted installation.
- ✓ Protection: IP65 front and back protection for reliable outdoor operation.
- ✓ Smooth Display: ≥3840Hz refresh rate with ICN1065 driving IC for clear and stable video playback.
- ✓ Viewing Distance: Supports 3m to 120m viewing range for different outdoor advertising needs.
- ✓ Lifetime: 100,000 hours long service life for continuous outdoor commercial use.
Get a Quote
Interested in this product? Contact our team for pricing, customization options, and technical specifications.
Categories
Product Details
Specifications
Technical Specifications
Detailed technical parameters across all available models.
| ITEM | HD OUTDOOR LIGHTING POLE LED SCREENS | |||||||
|---|---|---|---|---|---|---|---|---|
| Product model | SJ-P2 | SJ-P2.5 | SJ-P3.076 | SJ-P4 | SJ-P5 | SJ-P6.67 | SJ-P8 | PSJ-10 |
| Pixel pitch | 2mm | 2.5mm | 3.076mm | 4mm | 5mm | 6.67mm | 8mm | 10mm |
| Physical density | 250000/m² | 160000/m² | 105625/m² | 62500/m² | 40000/m² | 22500/m² | 15625/m² | 10000/m² |
| LED Package | SMD1112 (3in1) | SMD 1415 (3in1) | SMD1921 (3in1) | SMD2727 (3in1) | SMD 3535 (3in1) | SMD 3535 (3in1) | SMD 3535 (3in1) | SMD 3535 (3in1) |
| Module size | 320mm*160mm | |||||||
| Modules resolution | 160*80 | 128*64 | 104*52 | 80*40 | 64*32 | 48*24 | 40*20 | 32*16 |
| Modules weight | 0.4±0.01kg | |||||||
| Driving method | 1/16S | 1/16S | 1/13S | 1/10S | 1/8S | 1/6S | 1/5S | 1/2S,1/4S |
| Interface definition | HUB-16P | |||||||
| Cabinet size | 960mm*1600mm*160mm | |||||||
| Cabinet size | 960mm*1600mm*160mm | |||||||
| Cabinets weight | 55KG | |||||||
| cabinets resolution | 480*800 | 384*640 | 312*520 | 240*400 | 192*320 | 144*240 | 120*200 | 96*160 |
| brightness(cd/m²) | ≥4000/m² | ≥5000cd/m² | ≥5500/m² | ≥6000cd/m² | ≥6500cd/m² | ≥6500cd/m² | ≥6500cd/m² | ≥6500cd/m² |
| Maximum power consumption | ≤1100W/m² | ≤900W/m² | ≤720W | ≤765W | ≤702W | ≤657W | ≤994W | ≤995W |
| Average power consumption | ≤550W/m² | ≤450W/m² | ≤360W/m² | ≤380W/m² | ≤350W/m² | ≤320W/m² | ≤490W/m² | ≤490W/m² |
| Refresh rate | ≥3840Hz (ICN1065 Driving IC) | |||||||
| Viewing angle Level | H: ≥160°Optional, V: ≥120°Optional | |||||||
| Viewing distance | 3-30m | 3-30m | 4-40m | 5-50m | 5-50m | 7-90m | 8-100m | 10-120m |
| Temperature | Working: -25℃~60℃, Storage: -35℃~80℃ | |||||||
| Humidity | 10%~95% | |||||||
| Working voltage | Input: AC 100V~240V, 50Hz/60Hz, Output: DC 5V | |||||||
| Protection grade | Front: IP65, Back: IP65 | |||||||
| Lifetime | 100000 Hours | |||||||
