Indoor transparent
HD INDOOR TRANSPARENT LED SCREENS
Description

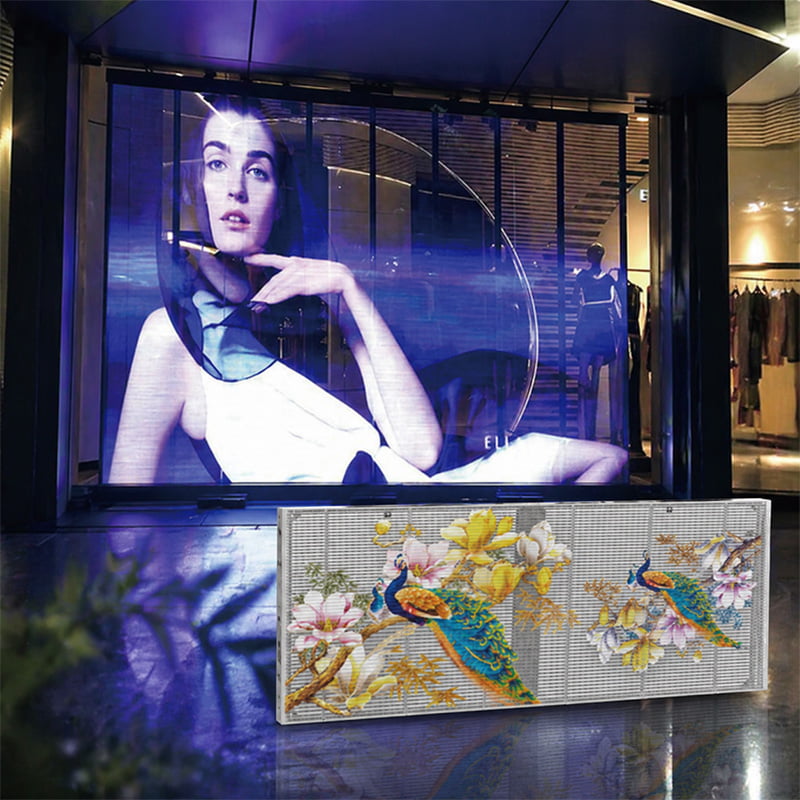

- ✓ Application: Perfect for indoor glass walls, retail windows, shopping malls, showrooms, and transparent advertising displays.

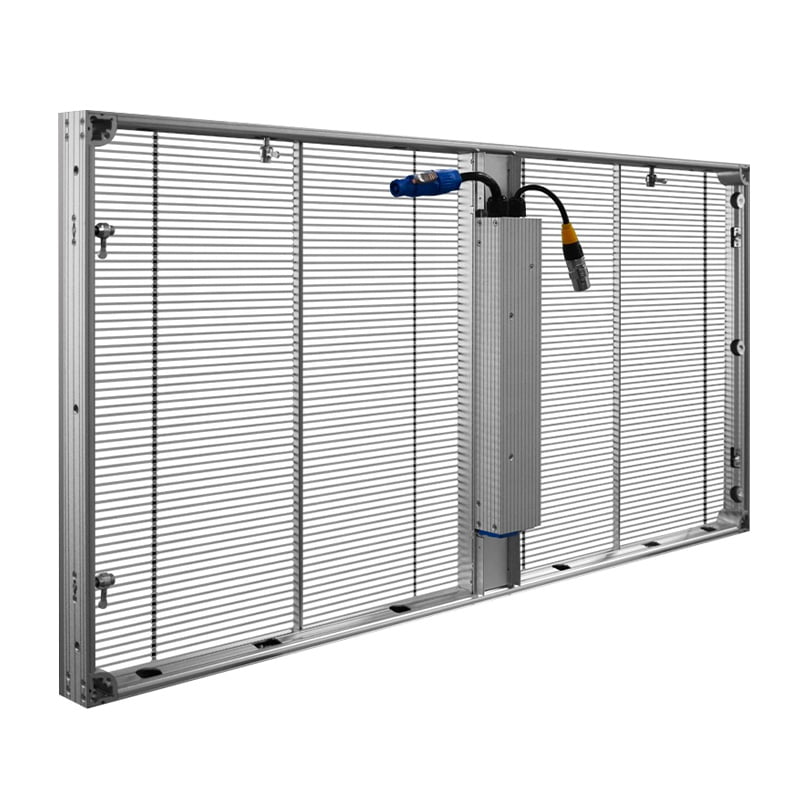

- ✓ Transparent Design: Lightweight 16.5kg/m² cabinet structure for elegant see-through LED display installation.
- ✓ Brightness: 1200cd/m² brightness for clear and comfortable indoor visual performance.
- ✓ Pixel Pitch: P2.8 / P3.91 / P7.81 / P10.41 options available for different viewing distances.
- ✓ Smooth Display: ≥3840Hz refresh rate with ICN1065 driving IC for stable and flicker-free playback.
- ✓ Viewing Distance: Supports 3m to 120m viewing range for flexible indoor display applications.
- ✓ Maintenance: Front and back service design for convenient installation and maintenance.
- ✓ Lifetime: 100,000 hours long service life for continuous indoor commercial operation.
Get a Quote
Interested in this product? Contact our team for pricing, customization options, and technical specifications.
Categories
Product Details
Specifications
Technical Specifications
Detailed technical parameters across all available models.
| ITEM | INDOOR TRANSPARENT LED SCREENS | |||
|---|---|---|---|---|
| Product model | SJ-P2.8 | SJ-P3.91 | SJ-P7.81 | SJ-10.41 |
| Pixel pitch | 2.8mm | 3.91-7.81mm | 7.81mm | 10.41mm |
| Physical density | 127551dots/m² | 32768dots/m² | 16384dots/m² | 9126dots/m² |
| LED Package | SMD 1515 (3in1) | SMD 2121 (3in1) | SMD 2121 (3in1) | SMD 2727 (3in1) |
| Driving method | 1/16S | 1/16S | 1/8S | 1/3S |
| Interface definition | Custom Ports | |||
| Cabinet size | 500mm*1000mm / 1000mm*500mm / 1000mm*1000mm | |||
| Cabinets weight | 16.5kg/m² | |||
| cabinets resolution | 357*357 | 256*256 | 128*128 | 96*96 |
| brightness(cd/m²) | 1200cd/m² | |||
| Power consumption | Max: ≤300W/m², Average: ≤150W/m² | Max: ≤300W/m², Average: ≤150W/m² | Max: ≤300W/m², Average: ≤150W/m² | Max: ≤800W/m², Average: ≤400W/m² |
| Refresh rate | ≥3840Hz (ICN1065 Driving IC) | |||
| Viewing angle Level | H: ≥160°Optional, V: ≥120°Optional | |||
| Viewing distance | 3-30m | 3-30m | 8-100m | 10-120m |
| Temperature | Working: -25℃~60℃, Storage: -35℃~80℃ | |||
| Humidity | 10%~90% | |||
| Working voltage | Input: AC 100V~240V, 50Hz/60Hz, Output: DC 5V | |||
| Maintenance method | Front/Back service | |||
| Protection grade | Front: IP41, Back: IP41 | |||
| Lifetime | 100000 Hours | |||
