Posters screen

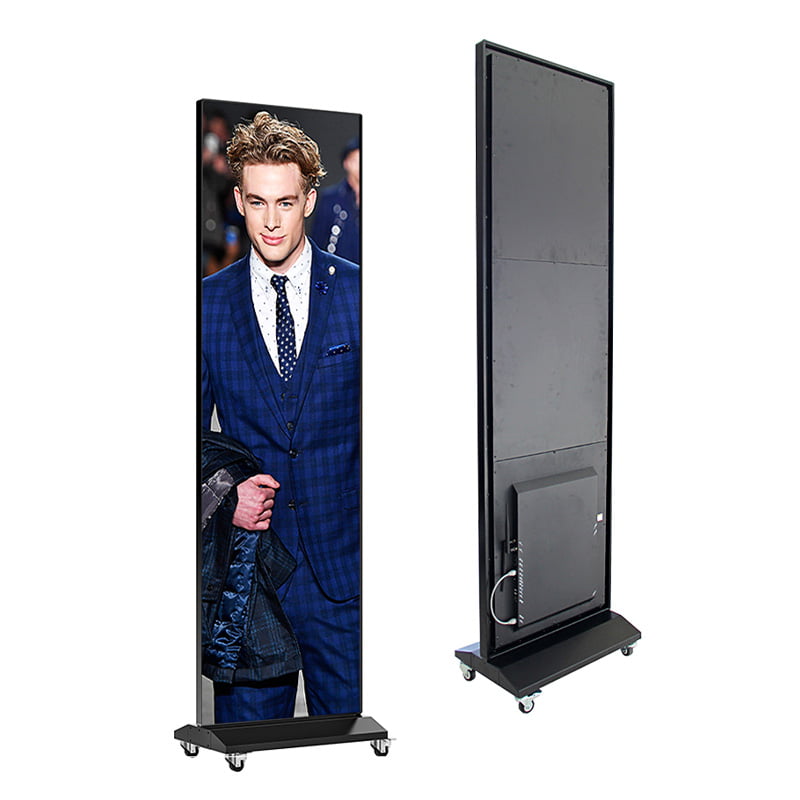

HD INDOOR LED POSTERS / ADVERTISING LED MACHINE
Description
- ✓ Application: Perfect for indoor advertising posters, retail displays, shopping malls, showrooms, and digital signage.
- ✓ Poster Design: 640mm*1920mm*70mm slim cabinet for elegant vertical advertising display installation.
- ✓ Pixel Pitch: P1.25 / P1.53 / P1.86 / P2 / P2.5 options for high-definition indoor viewing.
- ✓ Brightness: 700-1200cd/m² brightness range for clear and comfortable indoor visual performance.
- ✓ Smooth Display: ≥3840Hz refresh rate with ICN1065 driving IC for stable and flicker-free playback.
- ✓ Wide Viewing Angle: Optional H ≥160° and V ≥120° viewing angles for better audience coverage.
- ✓ Maintenance: Front and back service design for convenient installation and maintenance.
- ✓ Lifetime: 100,000 hours long service life for continuous indoor commercial operation.
Get a Quote
Interested in this product? Contact our team for pricing, customization options, and technical specifications.
Categories
Product Details
Specifications
Technical Specifications
Detailed technical parameters across all available models.
| ITEM | INDOOR LED POSTERS/ADVERTISING LED MACHINE | ||||
|---|---|---|---|---|---|
| Product model | SJ-P1.25 | SJ-P1.53 | SJ-P1.86 | SJ-P2 | SJ-P2.5 |
| Pixel pitch | 1.25mm | 1.53mm | 1.86mm | 2mm | 2.5mm |
| Physical density | 640000/m² | 427186/m² | 289050/m² | 250000/m² | 160000/m² |
| LED Package | SMD 1010 (3in1) | SMD 1212 (3in1) | SMD 1515 (3in1) | SMD 1515 (3in1) | SMD 2121 (3in1) |

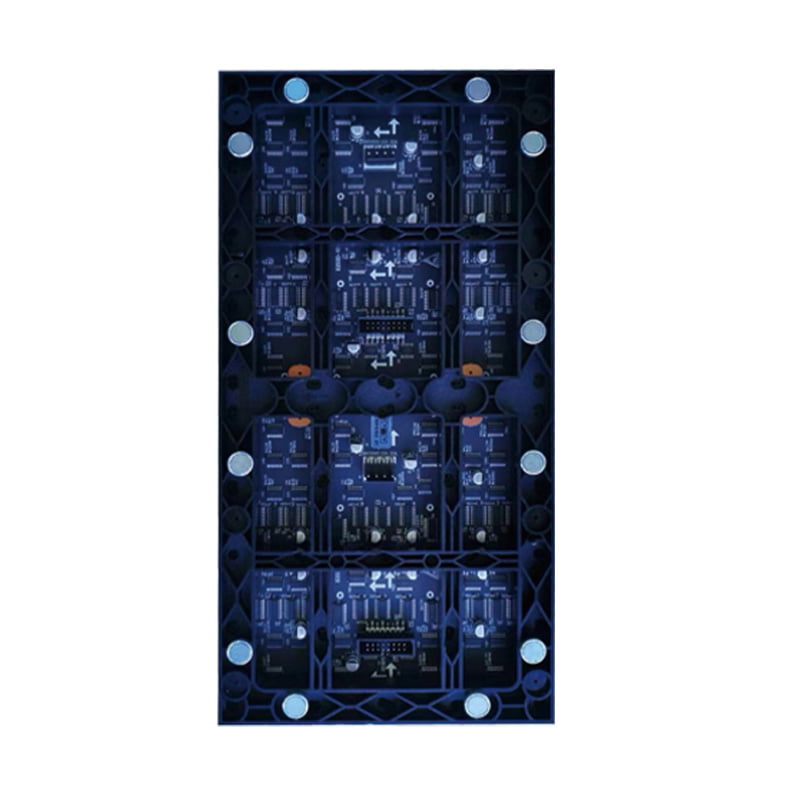

| Module size | 320mm*160mm | ||||
| Modules resolution | 208*104 | 208*104 | 172*86 | 160*80 | 128*64 |
| Modules weight | 0.3kg±0.05kg | ||||
| Driving method | 1/64S | 1/52S | 1/43S | 1/40S | 1/32S |
| Interface definition | HUB-16P/26P | HUB-16P/26P | HUB-16P/26P | HUB-16P | HUB-16P |
| Cabinet size | 640mm*1920mm*70mm | ||||
| Cabinets weight | 45kg±1kg | ||||
| cabinets resolution | 416*1248 | 416*1248 | 344*1032 | 320*960 | 256*768 |
| brightness(cd/m²) | 700-800cd/m² | 700-800cd/m² | ≥800cd/m² | ≥800cd/m² | 900-1200cd/m² |
| Power consumption | Max: ≤830W/m², Average: ≤420W/m² | ||||
| Refresh rate | ≥3840Hz (ICN1065 Driving IC) | ||||
| Viewing angle Level | H: ≥160°Optional, V: ≥120°Optional | ||||
| Viewing distance | 2-40m | ||||
| Temperature | Working: -25℃~60℃, Storage: -35℃~80℃ | ||||
| Humidity | 10%~90% | ||||
| Working voltage | Input: AC 100V~240V, 50Hz/60Hz, Output: DC 5V | ||||
| Maintenance method | Front/Back service | ||||
| Protection grade | Front: IP40, Back: IP51 | ||||
| Lifetime | 100000 Hours | ||||
